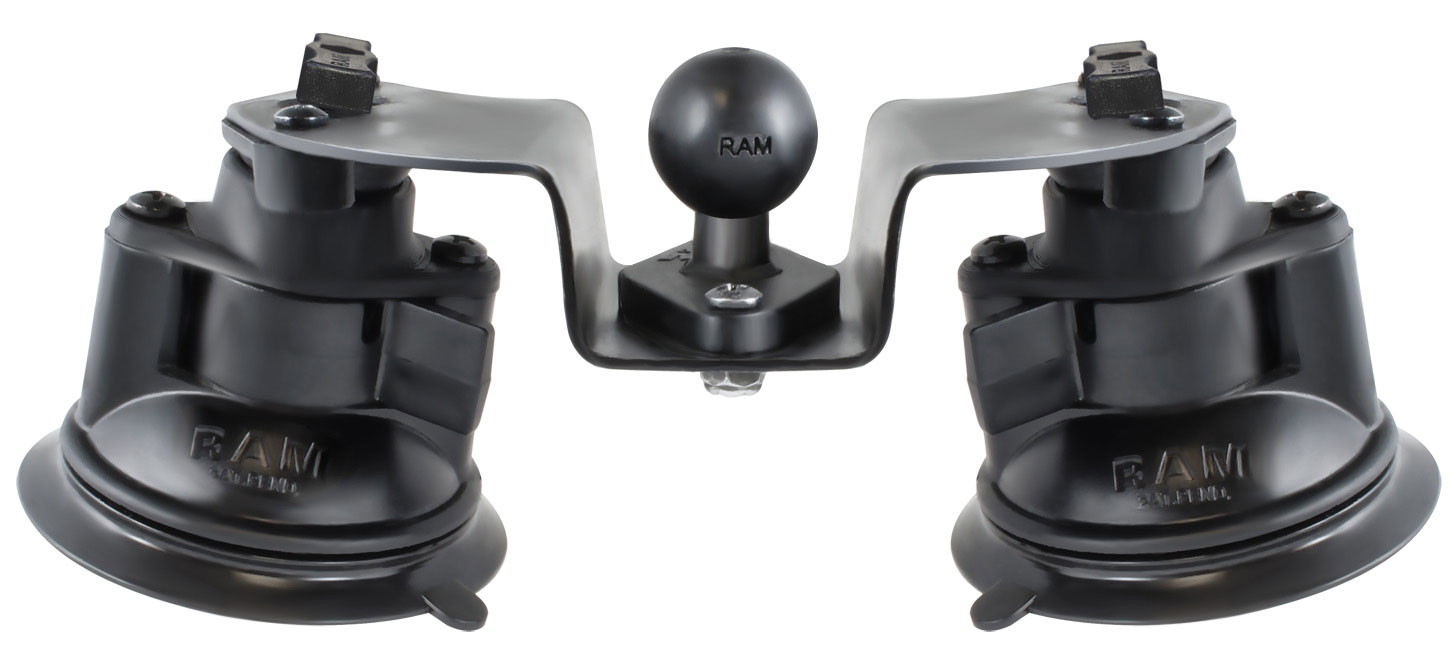

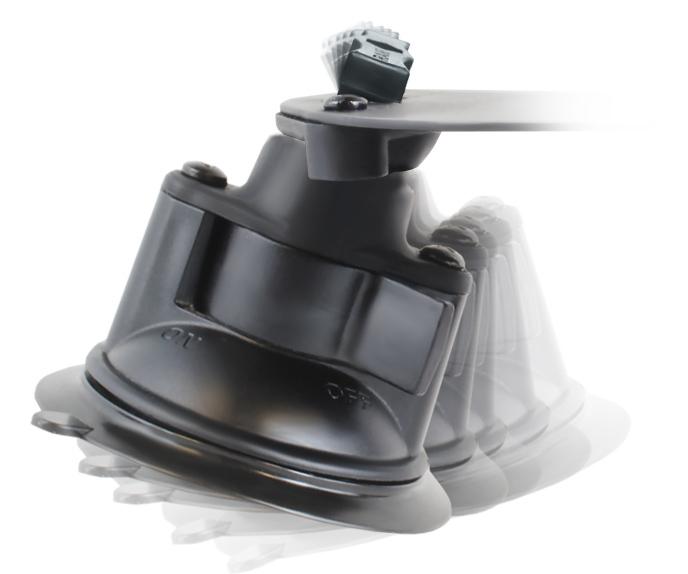

The RAM-B-189B-PIV1U Double Articulating pivoting Locking Suction Mount Base consists of an indented plate with a RAM Locking Suction Cup Base at each end, along with a 1" B size ball. Each suction cup can be articulated and pivoted individually, allowing you to mount the base not just to flat surfaces, but also angled and curved ones.

Key Features:

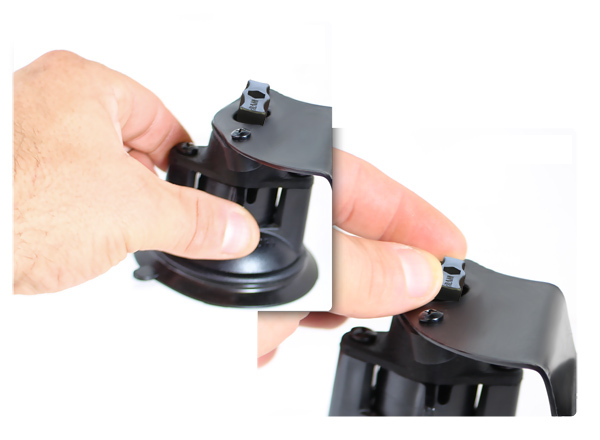

  • RAM® Twist-Lock™ dual suction cup base is ideal for vehicle windshields and other nonporous surfaces; pivoting feature allows for attachment to curved surfaces
  • Includes diamond ball base compatible with any B size RAM® double socket arm; ball and socket technology allows for near-infinite adjustability
  • Made of high-strength composite and powder-coated steel for durability and reliability in the most demanding environments
  • Backed by a lifetime warranty*
Kits containing this part Need this component urgently? View complete kits that include this component

(RAM-B-189B-PIV1U)

RAM-189B-PIV1U
RAM-189B-PIV1U
Not sold separately

Technical Specifications:

Hardware IncludedAssembly Hardware
Suction Size(2) 3.3" (83.8 mm) Diameter Bases, Total Width 7.95" (201.9 mm)
Ball SizeB Size (1")
Weight CapacityStandard Use: 2 lbs (0.91 kg)
Heavy-Duty Use: 1 lb (0.45 kg)
MaterialsPowder coated steel
Marine-grade aluminum
High strength composite
Packaging TypePoly Bag

Product Information

SKU RAM-B-189B-PIV1U
Barcode 793442944345
Brand RAM Mounts
Weight 0.47 kg
Warranty RAM Mounts components are generally covered by a lifetime warranty against manufacturing defects. Electronic items (and docks and parts containing electronic components) are typically covered by a 3-year warranty. Some items are considered general wear, such as suction cups, foam pads, rubber feet etc.
