X-Grip Large UN10 Phone Mount with Vibe-Safe and Reservoir Base
RAM-B-174-UN10-462
In Stock: 3

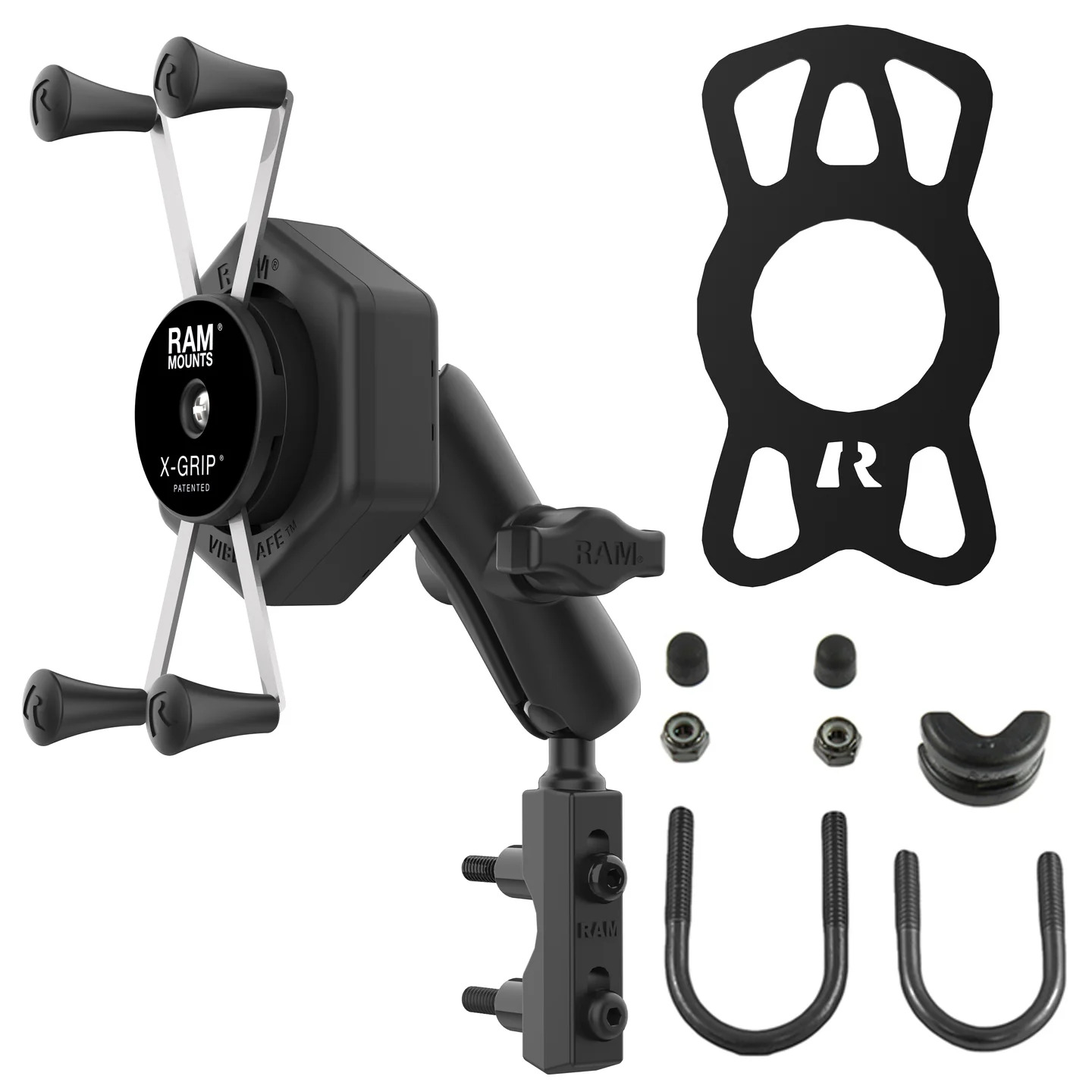

The RAM X-Grip Large Phone Mount with RAM Vibe-Safe & Reservoir Base (RAM-B-174-UN10-462) is a combination of the RAM X-Grip Phone Mount with Motorcycle Brake/Clutch Reservoir & Handlebar Base and the RAM Vibe-Safe - our vibration damping accessory is designed to protect electronic devices from a wide range of vibration frequencies. The RAM X-Grip can rotate between portrait and landscape by loosening the center screw. This product comes with one (1) medium B size arm, one (1) RAM Motorcycle Brake/Clutch Reservoir & Handlebar Ball Base that attaches to either the handlebar or brake/clutch that accommodates rails from .5" - 1.25" in diameter and an optional device tether that is recommended for outdoor applications. This kit also includes one (1) zinc-coated metal U-bolt that accommodates rails ranging from 0.5" to 1.25" in diameter. The holder is compatible with handheld devices that will fit the dimensions listed below, it is important to verify the dimensions of your handheld device with a case/sleeve/skin when determining the overall size.
- RAM® Vibe-Safe™ dampens a wide range of vibration frequencies
- Made of high-strength composite and stainless steel hardware for durability and reliability in the most demanding environments
- Unique structure and thoughtfully designed with all industries in mind
- Backed by a lifetime warranty
(RAM-B-174-UN10-462)
Technical Specifications:
| Hardware Included | (1) Optional Tether (1) Glue Tube for Rubber Caps (2) M6 x 55mm Hex Bolts (2) #1/4-20 x 2" Hex Bolts (2) 1/4"-20 x 2.5" Hex Bolts (2) 1/2" Spacers (2) 1/4" Split Lock Washers (1) 1/4"-20 U-Bolt for .5" - 1" Rails (1) 1/4"-20 U-Bolt for 1" - 1.25" Rails (2) 1/4"-20 Nyloc Nuts (2) Rubber Caps (1) U-Bolt Spacer |
|---|---|
| Holder Dimensions | Width Range: 1.75" (4.45 cm) - 4.5" (11.43 cm) Depth Range: .875" (2.22 cm) max |
| Clamp Range | .5" (12.7 mm) - 1.25" (31.8 mm) diameter |
| Socket To Socket Length | 3" (7.62 cm) |
| Ball Size | B Size (1") |
| Weight Capacity | Standard Use: 2 lbs (0.91 kg) Heavy-Duty Use: 1 lb (0.45 kg) |
| Materials | Marine-grade aluminum High strength composite Stainless steel |
| Packaging Type | Retail Bag |
Product Information
| SKU | RAM-B-174-UN10-462 |
|---|---|
| Barcode | 793442017940 |
| Brand | RAM Mounts |
| Weight | 0.90 kg |
| Warranty | RAM Mounts components are generally covered by a lifetime warranty against manufacturing defects. Electronic items (and docks and parts containing electronic components) are typically covered by a 3-year warranty. Some items are considered general wear, such as suction cups, foam pads, rubber feet etc. |
