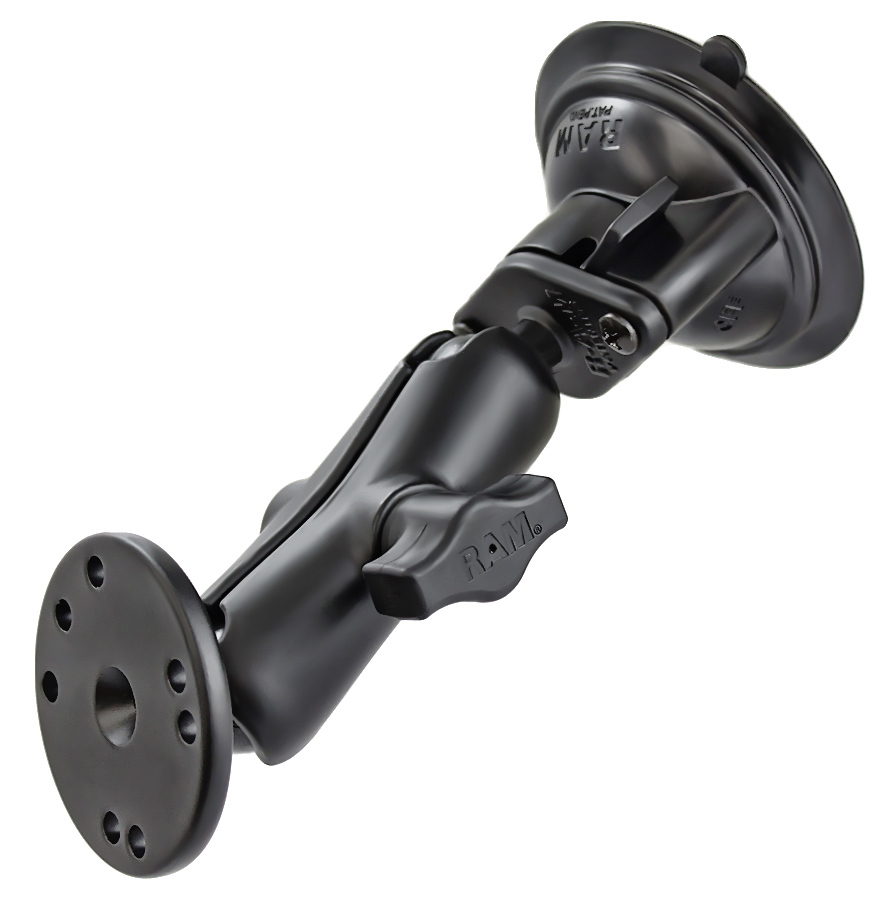

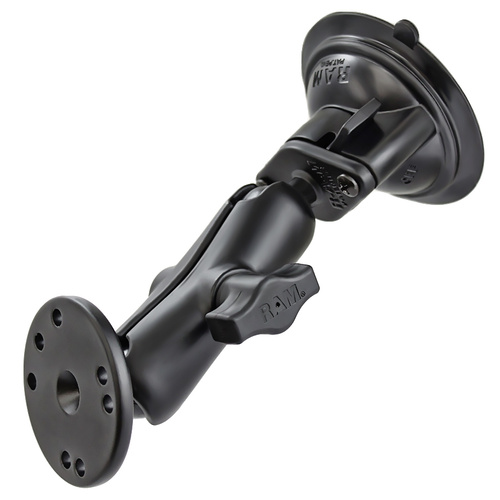

Twist-Lock Suction Round Plate Standard Arm (RAM-B-166-202U)

The RAM-B-166-202U consists of a 3.3" suction cup twist lock base, STANDARD length double socket arm and round base adapter that contains the universal AMPS hole pattern. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles. The suction cup base is designed to have a strong hold on glass and non-porous plastic surfaces, including RAM adhesive disks. The hole pattern found on the round base adapter will connect to most RAM cradles and 3rd party cradles.

A plastic option is available at a cheaper cost, with the same lifetime warranty and weight ratings below:

https://www.realmounts.com.au/rap-b-166-202u

Key Features:

RAM® Twist-Lock™ suction cup base is ideal for vehicle windshields and other nonporous surfaces
Includes B size medium length RAM® double socket arm and 2.5" round base with B size 1" rubber ball; ball and socket technology allows for near-infinite adjustability
Made of powder-coated, marine-grade aluminum and high-strength composite for durability and reliability in the most demanding environments
Backed by a lifetime warranty*

(RAM-B-166-202U)

Instructions

RAM® Twist-Lock™ Suction Cup Assembly Guide

Documents

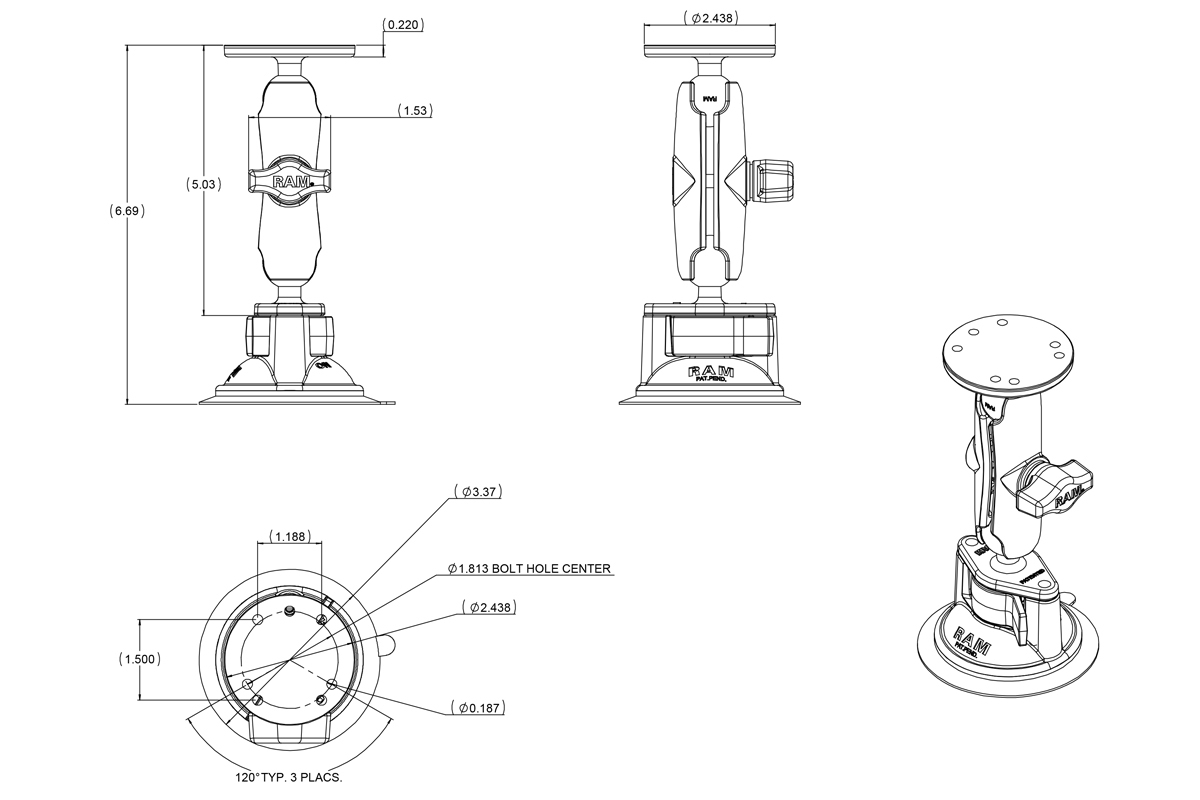

Drawing File: Complete Suction Cup Mount On Road Catalog

25mm (1") Small Ball and Base

RAM-B-202U

Double Socket Arm - B Size Medium

RAM-B-201U

Locking B Suction Metal Plate

RAM-B-224-1U

Technical Specifications:

Hardware Included	Assembly Hardware
Product Dimensions	Overall Height: 6.69" (16.99 cm)
Suction Size	3.3" (83.8 mm) Diameter
Socket To Socket Length	3" (7.62 cm)
Hole Pattern	4-Hole AMPS: 1.181" x 1.496" 3-Hole 120-Degree: 1.812" Diameter
Plate Size	2.5" (63.5 mm) Diameter
Ball Size	B Size (1")
Weight Capacity	Standard Use: 2 lbs (0.91 kg) Heavy-Duty Use: 1 lb (0.45 kg)
Materials	Marine-grade aluminum High strength composite
Packaging Type	Poly Bag

Product Information

SKU	RAM-B-166-202U
Barcode	793442905391
Brand	RAM Mounts
Weight	0.32 kg
Warranty	RAM Mounts components are generally covered by a lifetime warranty against manufacturing defects. Electronic items (and docks and parts containing electronic components) are typically covered by a 3-year warranty. Some items are considered general wear, such as suction cups, foam pads, rubber feet etc.
