X-Grip UN8 Universal Drill-Down Mount for 7"-8" Tablets (RAM-B-138-UN8U)

The RAM-B-138-UN8 consists of a 2.5" diameter round base with the universal AMPS hole pattern, double socket arm and universal X-Grip clamping cradle for 7"-8" tablets. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles. The spring loaded X-Grip cradle expands and contracts, allowing for a perfect custom fit of your 7"-8" tablet. Included are extra easy access grip knobs, located on the back of the cradle for quick release of your tablet. The X-Grip includes a device tether recommended for outdoor applications. The cradle is compatible with handheld devices that will fit the dimensions listed below. It is important to verify the dimensions of your handheld device with a case/sleeve/skin when determining the overall size.

Key Features:

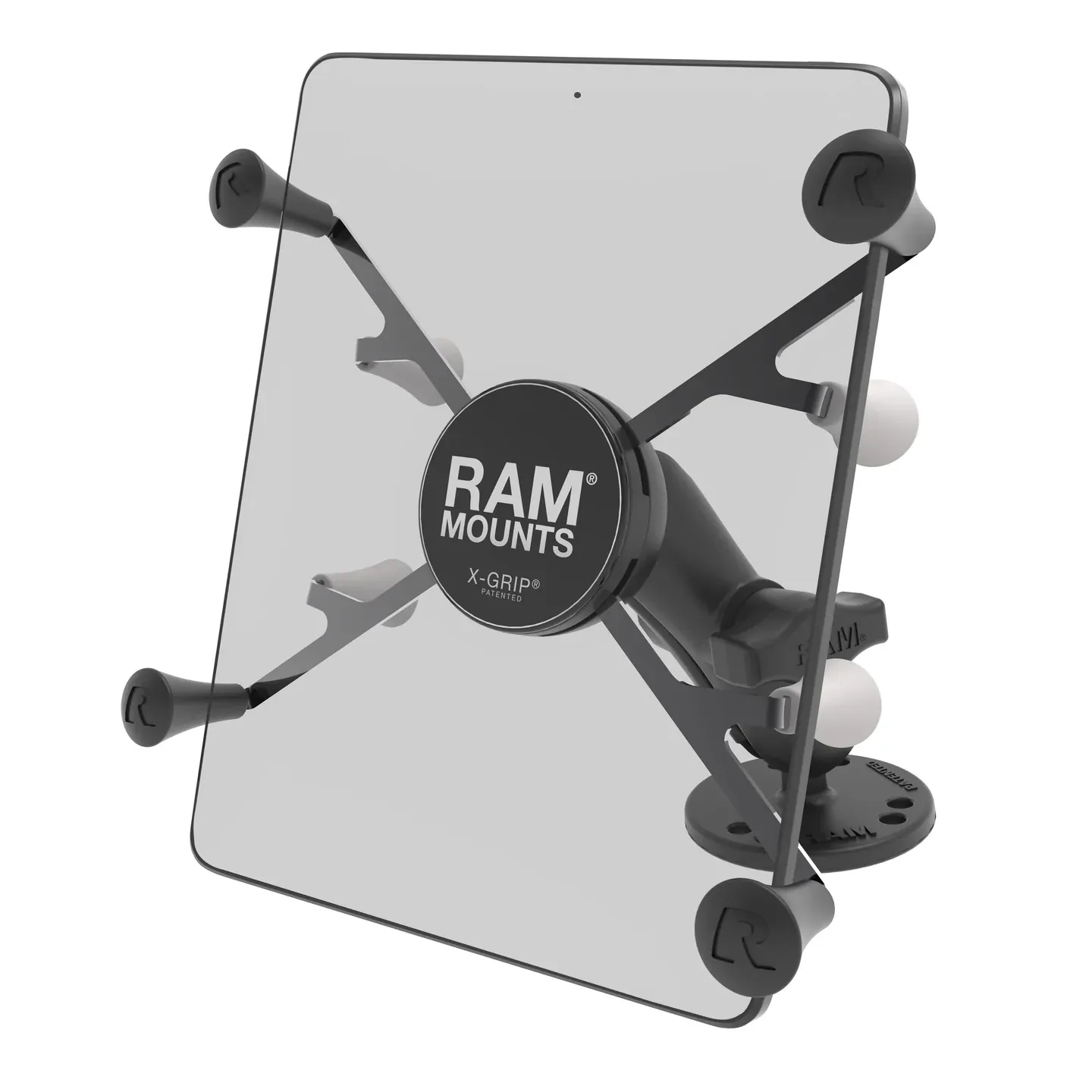

Spring-loaded 'X' design features rubber caps and sports great holding power without hiding your tablet; fits most 7"-8" tablets

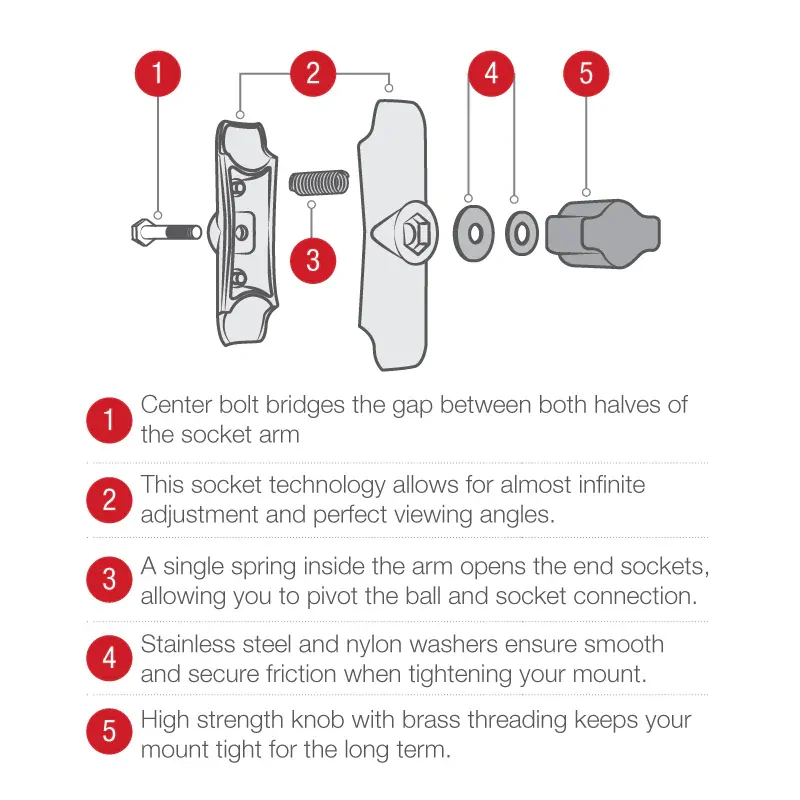

Includes drill-down 2.5" round base and medium length, B size RAM® double socket arm; ball and socket technology allows for near-infinite adjustability
Made of powder-coated, marine-grade aluminum, stainless steel components, and high-strength composite for durability and reliability in the most demanding environments
Backed by a lifetime warranty

(RAM-B-138-UN8U)

Technical Specifications:

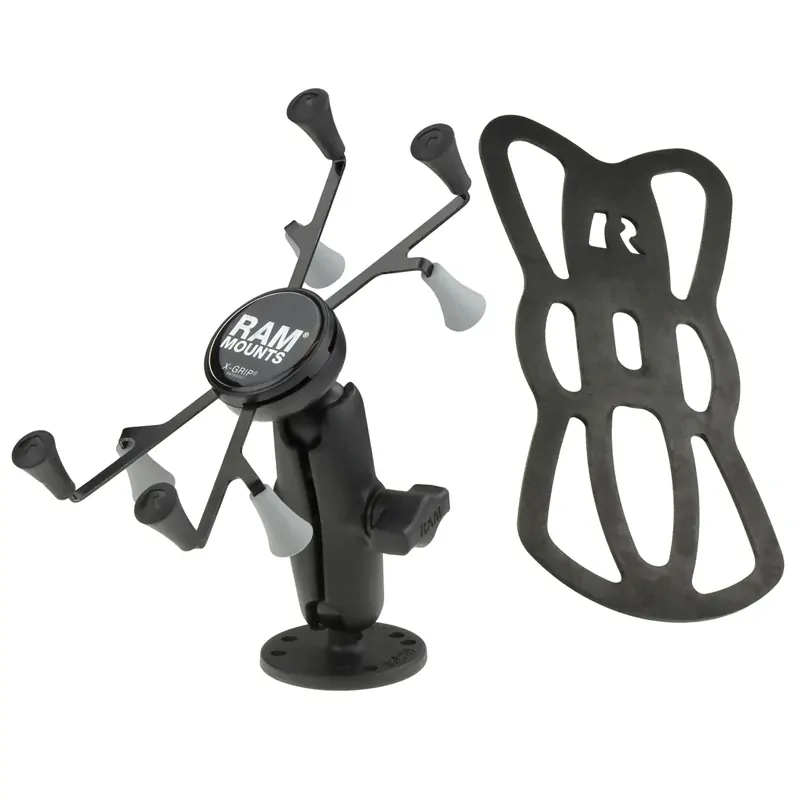

Hardware Included	(1) Optional Tether (1) Glue Tube for Rubber Caps
Holder Dimensions	Width Range: 2.5" (6.35 cm) - 5.75" (14.61 cm) Depth Range: .875" (2.22 cm) max
Socket To Socket Length	3" (7.62 cm)
Hole Pattern	4-Hole AMPS: 1.181" x 1.496" 3-Hole 120-Degree: 1.812" Diameter
Plate Size	2.5" (63.5 mm) Diameter
Ball Size	B Size (1")
Weight Capacity	Standard Use: 2 lbs (0.91 kg) Heavy-Duty Use: 1 lb (0.45 kg)
Materials	Marine-grade aluminum High strength composite Stainless steel
Packaging Type	Poly Bag
