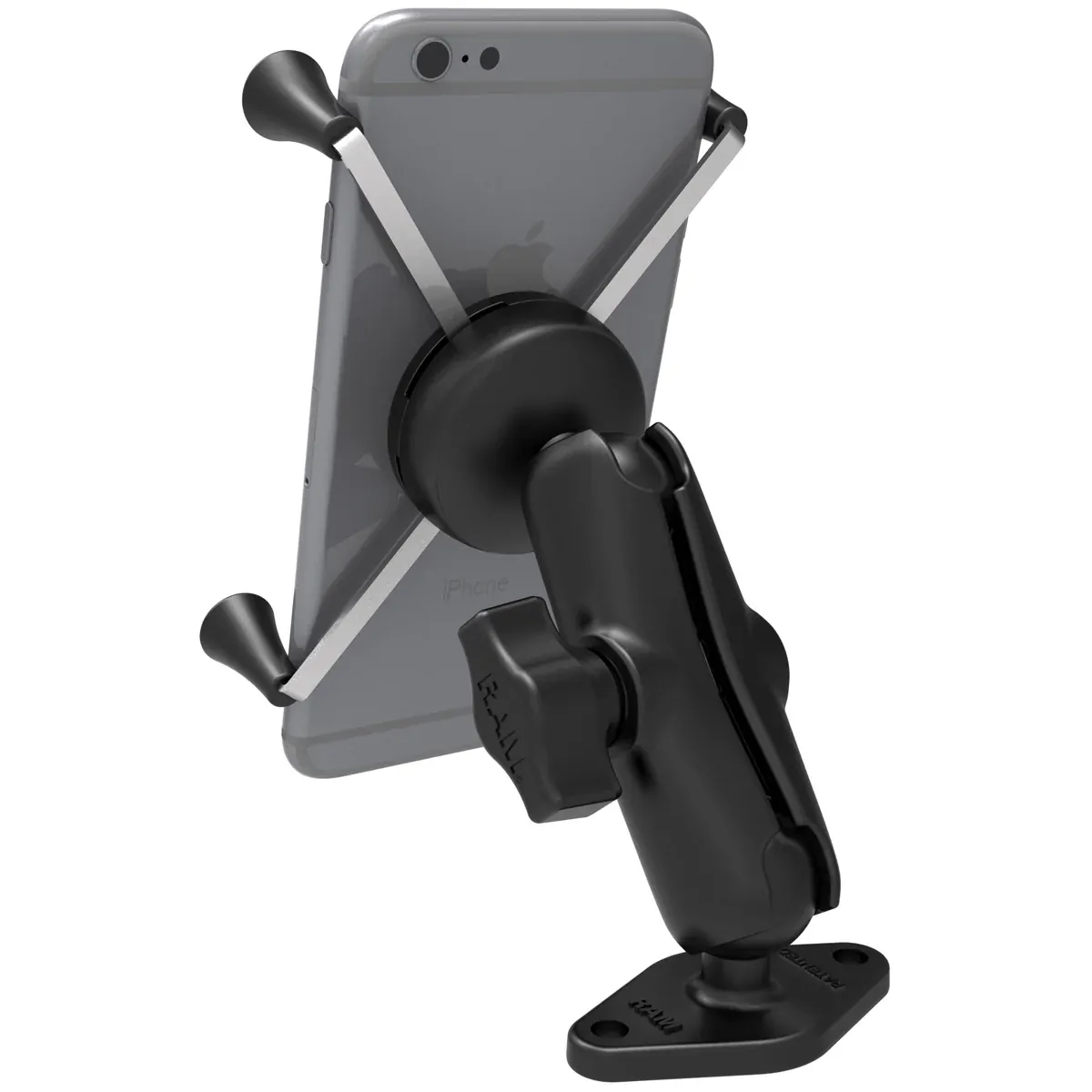

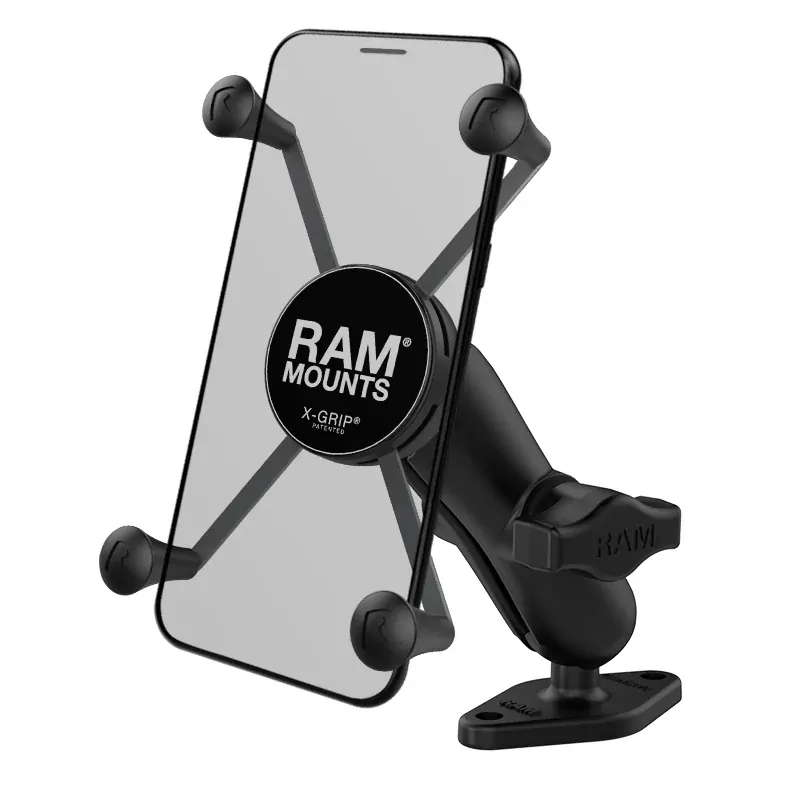

X-Grip UN10 Large Phone Mount with Diamond Base (RAM-B-102-UN10U)

The popular spring-loaded RAM X-Grip phone holder features an 'X' design that expands and contracts to provide a perfect fit for your device - even if it's in a case. This large version of the RAM X-Grip fits phones ranging from 1.75" to 4.5" in width and keeps your device completely functional and accessible. The included diamond ball base features the industry-standard AMPS hole pattern, while RAM ball and socket technology allows for near-infinite adjustability to achieve the ideal viewing angle - and helps to extend the life of your phone by providing shock and vibration damping. For outdoor applications - like being used as a motorcycle phone mount - the RAM X-Grip includes a device tether that is recommended for added security and peace of mind

Key Features:

Spring-loaded 'X' design for large phones with rubber caps sports great holding power without hiding your phone; includes optional device tether for peace of mind during rugged use

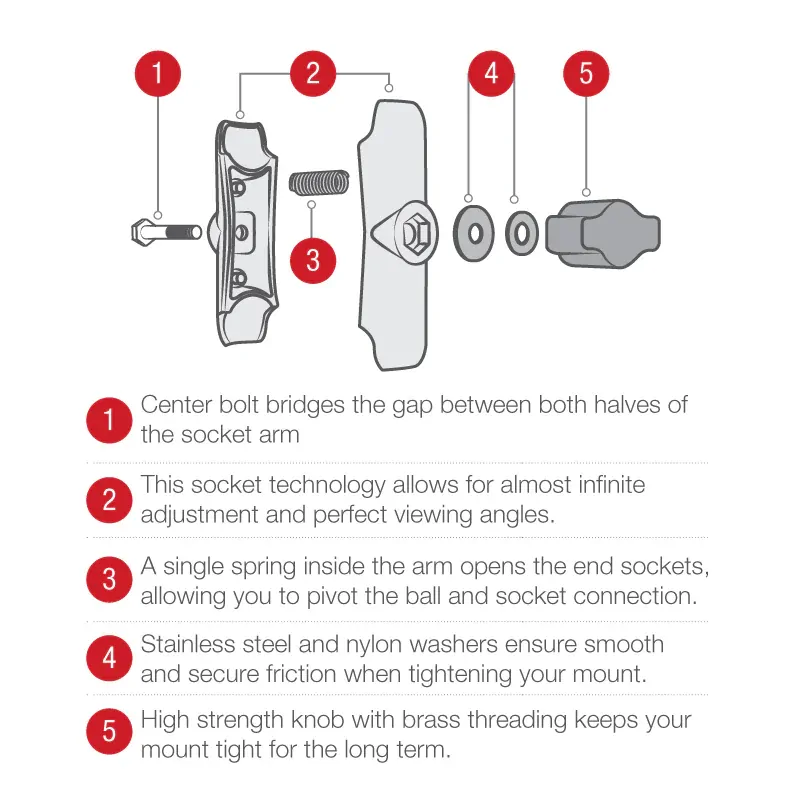

Diamond ball base featuring universal AMPS hole pattern included; ball and socket technology allows for near-infinite adjustability
Made of powder-coated, marine-grade aluminum, stainless steel components, and high-strength composite for durability and reliability in the most demanding environments
Backed by a lifetime warranty

(RAM-B-102-UN10U)

Technical Specifications:

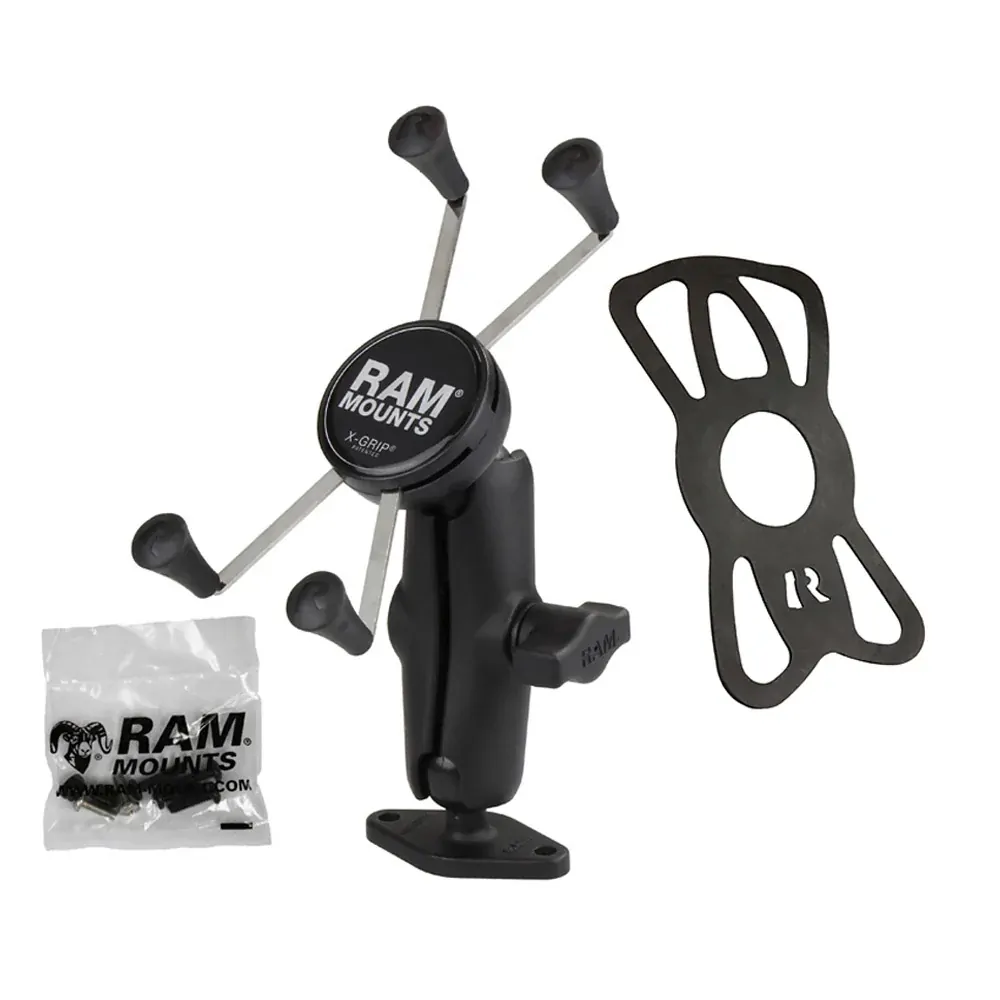

Hardware Included	(1) Optional Tether (1) Glue Tube for Rubber Caps (2) #8-32 x 1/2" Machine Screws (2) #8-32 x 5/8" Machine Screws (2) #8-32 x .75" Screws (2) #8-32 Nyloc Nuts

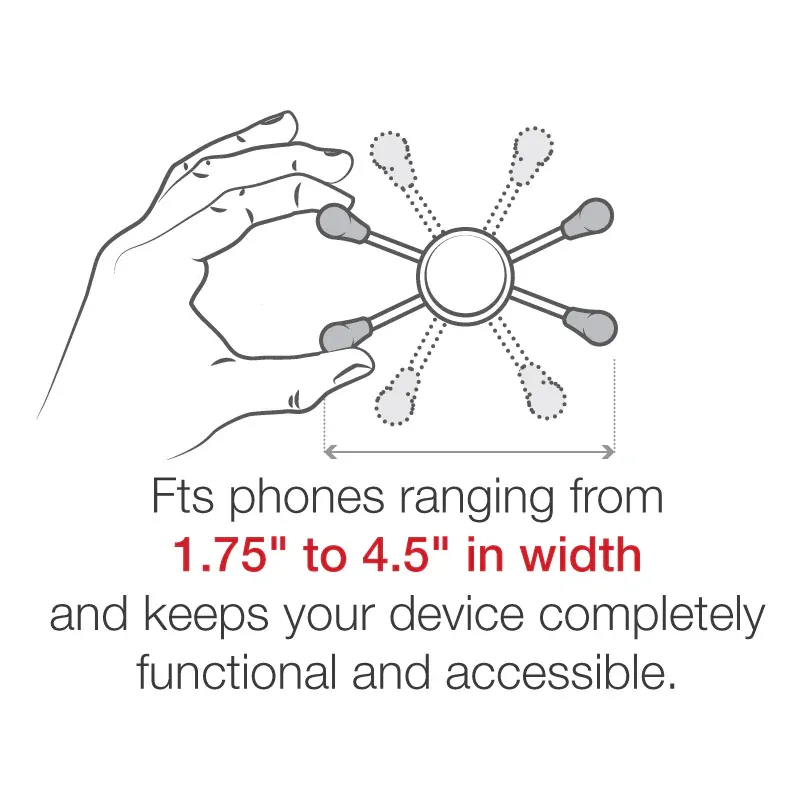

Holder Dimensions	Width Range: 1.75" (4.45 cm) - 4.5" (11.43 cm) Depth Range: .875" (2.22 cm) max

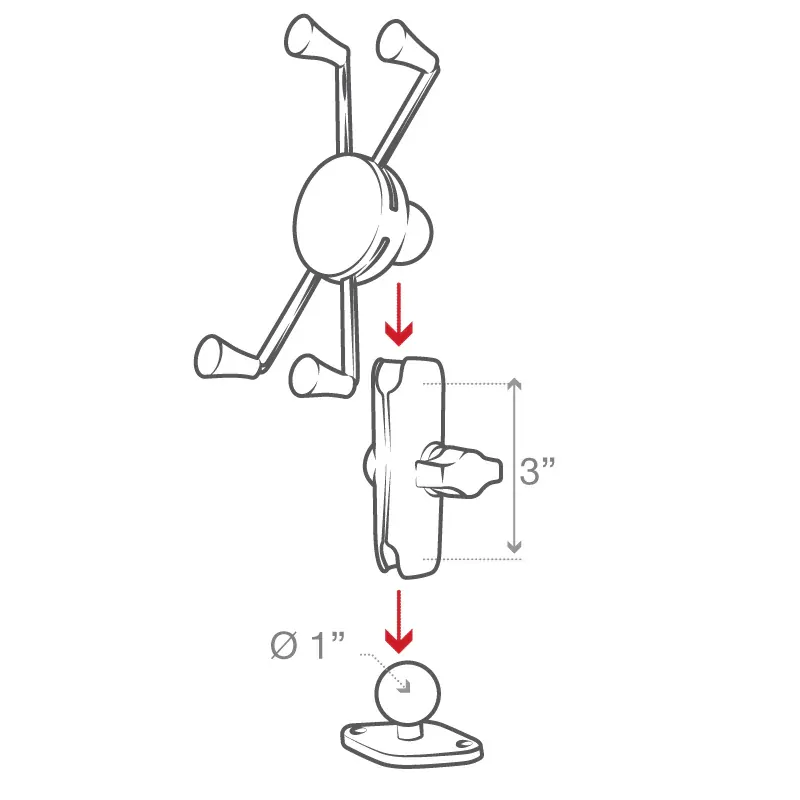

Socket To Socket Length	3" (7.62 cm)
Hole Pattern	2-Hole AMPS: 1.912"
Plate Size	2.43" (61.7 mm) x 1.31" (33.3 mm)
Ball Size	B Size (1")
Weight Capacity	Standard Use: 2 lbs (0.91 kg) Heavy-Duty Use: 1 lb (0.45 kg)
Materials	Marine-grade aluminum High strength composite Stainless steel
Packaging Type	Poly Bag
