C-Size Ball Adapter for Zebra Keyboard KYBD-QW-VC-01 VC70 80 (RAM-347-ZE17U)

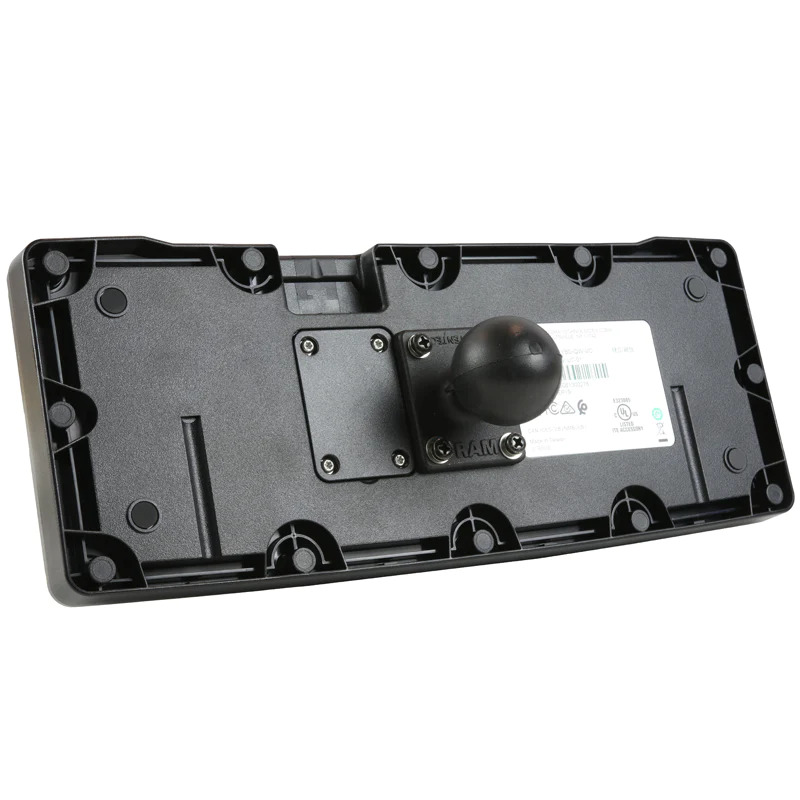

This RAM ball adapter kit is used for the Zebra KYBD-QW-VC-01 VC70/80 USB Keyboard. The kit includes hardware to attach the C size 1.5" RAM rubber ball to the keyboard. This allows for connection to any C size RAM double socket arm and desired mounting base.

Key Features:

RAM® Ball adapter kit for the Zebra KYBD-QW-VC-01 VC70/80 USB Keyboard
Includes keyboard hardware and C size 1.5" RAM® rubber ball allowing for connection to any C size RAM® double socket arm; ball and socket technology allows for near-infinite adjustability
Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
Backed by a lifetime warranty

(RAM-347-ZE17U)

Documents

Knowledge Base: Ball Sizes

Rectangle Base 2" x 1.7"

RAM-347U

Technical Specifications:

Hardware Included	(4) M4 x 16mm Machine Screws (4) M4 Lock Washers (4) M4 Flat Washers
Hole Pattern	4-Hole AMPS: 1.181" x 1.496"
Plate Size	1.69" (42.9 mm) x 2" (50.8 mm)
Ball Size	C Size (1.5")
Weight Capacity	Standard Use: 4 lbs (1.81 kg) Heavy-Duty Use: 3 lbs (1.36 kg)
Materials	Marine-grade aluminum
Packaging Type	Poly Bag

Product Information

SKU	RAM-347-ZE17U
Barcode	793442023064
Brand	RAM Mounts
Weight	0.20 kg
Warranty	RAM Mounts components are generally covered by a lifetime warranty against manufacturing defects. Electronic items (and docks and parts containing electronic components) are typically covered by a 3-year warranty. Some items are considered general wear, such as suction cups, foam pads, rubber feet etc.
