Horizontal Swing Arm Mount for Lowrance Elite-5 Series
RAM-109H-2B-B-LO11
In Stock: 1

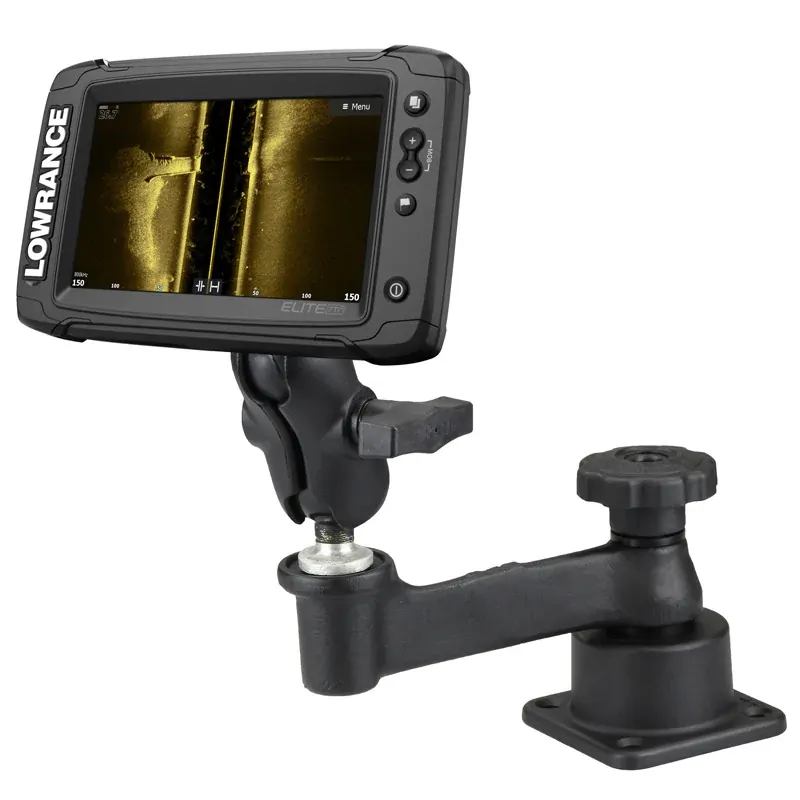

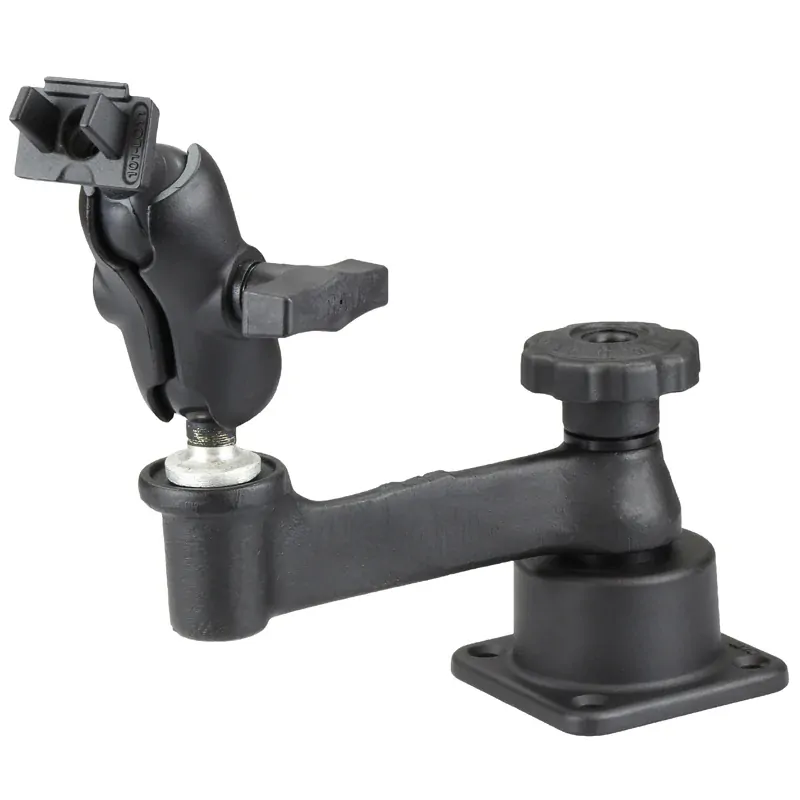

The RAM-109H-2B-B-LO11 consists of a 6" long straight swing arm mounted on a horizontal surface mounting base. At the free end of the mount swing arm is a C size 1.5" ball.The connection between the swing arm and the base is a bolt pivot point, and the round plate and arm connection is the RAM ball and socket system. The bolt pivoting point allows a complete 360-degree rotation and the ball and socket system allows a 180-degree vertical pivot with a 360-degree rotation. Included is a short length C size double socket arm, also included is the RAM Lowrance adapter base includes a 1.5" diameter rubber ball and inserts directly to the back of Lowrance Elite-5, Elite-5 Ti, Elite-7 Ti/Ti², HOOK-3, HOOK-4, HOOK-5 and MARK-5 Fishfinders. The adapter serves as a quick release mechanism, allowing you to remove or transfer your Fishfinder in seconds.
(RAM-109H-2B-B-LO11)
Technical Specifications:
| Socket To Socket Length | 3.56" (9.04 cm) |
|---|---|
| Hole Pattern | 2.5" x 2.5" |
| Plate Size | 3.47" (88.1 mm) x 3.47" (88.1 mm) |
| Ball Size | C Size (1.5") |
| Weight Capacity | Standard Use: 4 lbs (1.81 kg) Heavy-Duty Use: 3 lbs (1.36 kg) |
| Materials | Marine-grade aluminum |
| Packaging Type | Poly Bag |
Product Information
| SKU | RAM-109H-2B-B-LO11 |
|---|---|
| Barcode | 793442952142 |
| Brand | RAM Mounts |
| Weight | 1.2000 kg |
| Warranty | RAM Mounts components are generally covered by a lifetime warranty against manufacturing defects. Electronic items (and docks and parts containing electronic components) are typically covered by a 3-year warranty. Some items are considered general wear, such as suction cups, foam pads, rubber feet etc. |
